Stroboscopy Bundle

Item number: Strobo-Bundle

orlvision Stroboscopy Bundle

High-quality solution for voice and swallowing diagnostics

The orlvision Stroboscopy Bundle was specifically developed for clinical use in vocal cord examination and Functional Endoscopic Evaluation of Swallowing (FEES). This combination of endoscopy technology, a powerful panel PC, a stroboscopy light source, and specialized software enables detailed analysis and precise diagnostics.

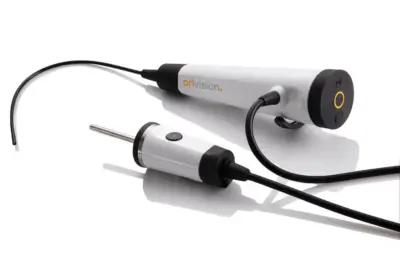

Video Rhino Laryngoscope RS1

Video Rhino Laryngoscope RS1

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

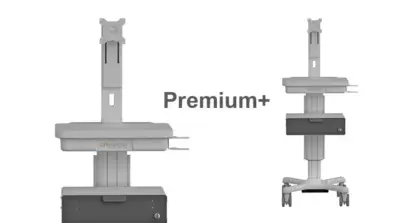

orlvision.shop product images trolleys 904x520px4

Premium+ Trolley

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

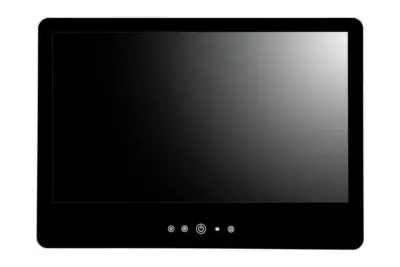

Medizinischer 21 Zoll Panel PC

21-inch Medical Panel PC

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

MediaWorkStation CLASSIC

MediaWorkStation CLASSIC incl. Installation (optional with DICOM integration)

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

DICOM Worklist | MediaWorkStation Anbindung

MediaWorkStation connection option DICOM worklist

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

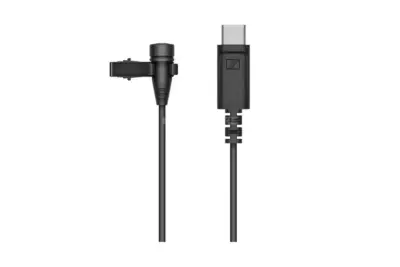

sennheiser

Ansteckmikrofon USB-C – Hochwertige Tonaufnahme

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

Medical Mouse

Medical Mouse – Ergonomic & Disinfectable - Wireless

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

Cherry-Disinfectable-PC-Keyboard-for-Highest-Hygiene-Requirements

Medical Keyboard – Ergonomic & Disinfectable - Wireless

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

Foot Switch USB-A_2P_USB_G5

Dual USB Foot Switch (Medical)

Prices and terms are available to business customers only after login.<br><a href="https://orlvision.de/en/my-account/" rel="nofollow">Log in now</a>

Prices and terms are available to business customers only after login.
Log in now

Additional information

The orlvision stroboscopy bundle is a system for video stroboscopy and digital ENT documentation.

Bundle Components:

Video Rhino-Laryngoscope RS1:

High-resolution Video Rhino-Laryngoscope for precise diagnostics
3.9 mm diameter, 310 mm working length
Fiber optic illumination for excellent image quality
PAL/NTSC video output for easy system integration
Compatible with various light sources (Storz, Wolf, Olympus, etc.)
Made in Germany

Medical Panel PC (21.5 inches)

21.5-inch touchscreen, high-resolution (1920 x 1080 px)
Disinfectant-resistant, easy to clean
240 GB SSD for fast data processing
IEC 60601-1 compliant

Inventis Stroboscope Highline Plus

High-performance stroboscopy light source for vocal cord analysis
Light source: White LED with 6800° K color temperature
Light intensity: 2000 lumens
Various operating modes: Stroboscopic, continuous light
Strobo modes: Slow motion, Freeze, 0.5 Hz, 1 Hz, 1.5 Hz
Control via main unit or footswitch
Microphones: Contact microphone and clip-on microphone
Connections: Audio, USB
Dimensions: 300 x 110 x 290 mm, Weight: 5.5 kg (incl. accessories)

Software:

Media Work Station Classic:

Software for FEES analysis with image and video recording
Frame-by-frame analysis and real-time documentation

DICOM Option:

Extension for connection to clinical systems
Secure data export and workflow integration

Invisa Strobo Interface:

Optimized for stroboscopy analysis
Seamless integration with existing systems

Accessories for the Panel PC:

Microphone for high-quality audio recordings
Medical Keyboard & Mouse – Disinfectant-resistant
Medical Footswitch – Hands-free software control
USB Converter & Analog-USB Adapter – Versatile connectivity options

System Trolley Premium Plus

Height adjustable (89 – 118 cm)
VESA mount for monitor, panel PC, or tablet
Endoscope holder for secure placement
4 sturdy, rubberized swivel casters

The orlvision Stroboscopy Solution offers mobile, flexible, and high-quality equipment for clinics and practices requiring reliable vocal cord and swallowing diagnostics.
